RUGGED!+™ PoE POWER SUPPLY (INJECTOR)

RUGGED!+™ PoE POWER SUPPLY – UNIVERSAL MOUNT

KEY FEATURES

  • Rugged!+™ IP66/67 Ruggedization
  • Available in Military & Commercial Grade
  • Designed for Wireless Communications, Cameras, & Sensors in Remote Areas
  • Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT
  • Lightweight Aluminum Packaging: 9lbs
  • Regulated 56VDC Output with Automatic Voltage & Current Clamping

DOWNLOAD SPECIFICATION PDF

REQUEST INFORMATION

KEY FEATURES

  • Rugged!+™ IP66/67 Ruggedization
  • Available in Military and Commercial Grade AVAILABLE IN MILITARY AND COMMERCIAL GRADE
  • Designed for Wireless Communications, Cameras, and Sensors in Remote Areas
  • Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT
  • Lightweight Aluminum Packaging: 7lbs
  • Regulated 56VDC Output with Automatic Voltage and Current Clamping

PRODUCT OVERVIEW

Our RPI Rugged!+™ PoE Power Supply is designed and built to handle harsh mission critical environments in noisy electrical conditions anywhere in the world.

The RUGGED!+™ PoE Power Supply. This platform enables customers to offer wireless communications, cameras, and sensors in remote areas. Each (PoE) power supply is equipped to provide clean power with the option of Battery Backup for power without interruption.

Military Units, Disaster Response Teams, and Law Enforcement personnel rely on real-time information. Most PoE power supply’s are small (15 watts) and require a climate controlled enclosure to protect them from the elements.

FULLY MIL QUALIFIED, TESTED, & CERTIFIED

The Terra Ferma RPI Rugged!+™PoE power supply is designe, tested, & certified to MIL-STD 810-H, MIL-STD 461.G, UL, CE Mark and IP67 rated. No FIPS certification is required to operate. The highly reliable, light weight, small form factor is designed to take shock, vibe, high temps, high humidity and is passively cooled.

QUIET, UNIVERSAL CONSTRUCTION

A fanless, rugged, all aluminum construction allows for a quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 30 minutes to 3-day capacity.

made in usa black logo
null

DESIGNED & MANUFACTURED IN THE USA

null

SMART ELECTRICAL FEATURES OF RUGGED!+™ PoE INJECTORS

Accept Any Power Source
Global AC power, DC batteries, generators, military vehicle, Telco -48V power, Solar with optional Battery Backup

Automatic Regulated Voltage Output
Regardless of input power, output power remains a stable 56VDC PoE

Automatic Adjustable Load Current
Output current adjusts from zero to almost 2 Amps based on the power needed by the device(s) plugged in to the ethernet port. Based on IEEE standard 802.3 AF/AT/BT as negotiated by PoE devise being powered

Automatic Power Reset
Auto-reset input power connections or output power supply in the event of over/under voltage or current

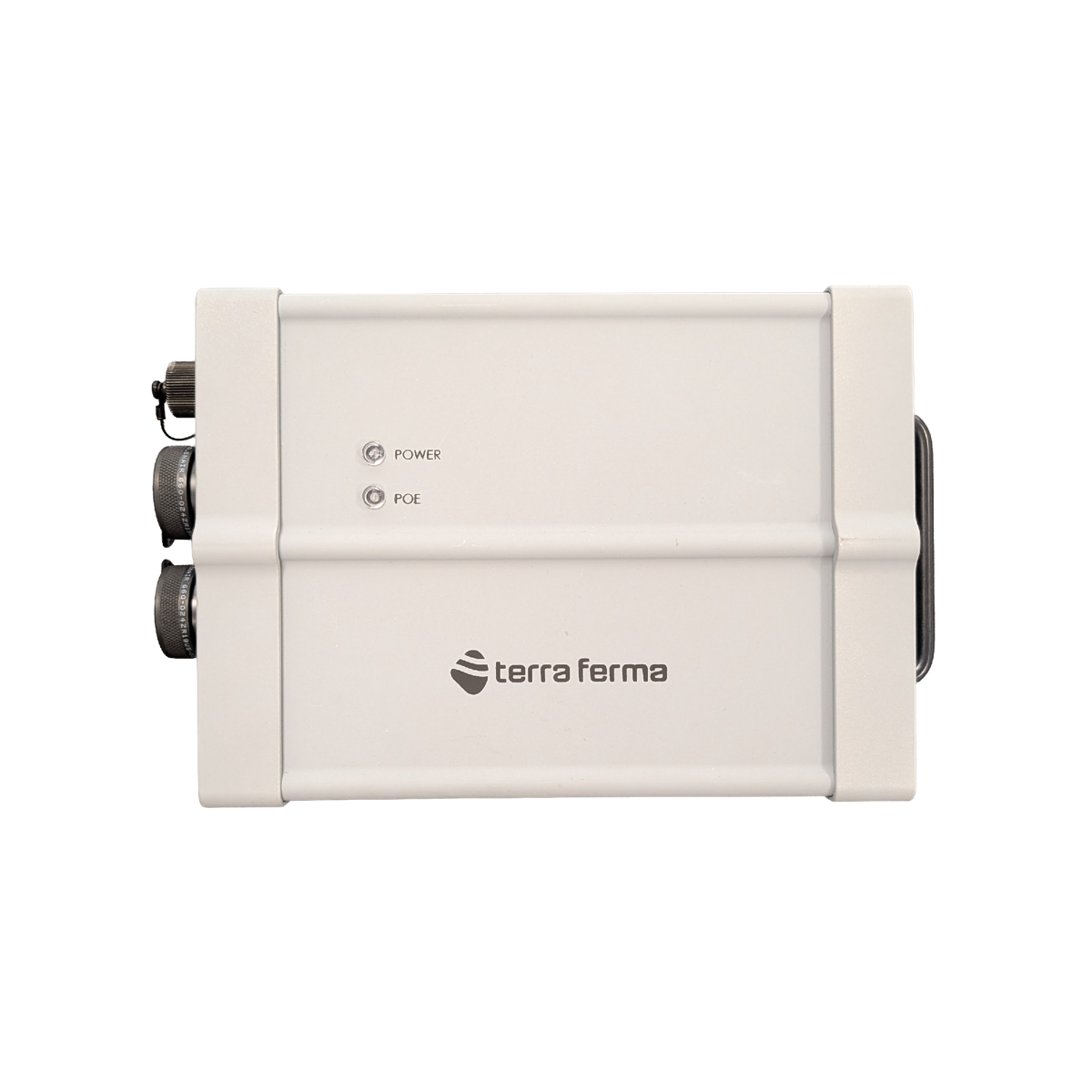

Simple Operational Light Displays
Provides status of Power and PoE

Reverse Polarity Protection
Provides assurance against damage due to polarity cross-up at installation

Standard IEEE configuration
PoE up to 90 watts, IEEE 802.3 af/at/bt

No FIPS Requirements
Can be used on DoD Networks without waiver

null

CONSTRUCTION & ENVIRO FEATURES OF RUGGED!+™ PoE INJECTORS

Sealed Housing Construction
Designed for outdoor use -sustained high winds, driving rain, freeze/thaw, UV.

Fanless
No electric motors to fail and no filters to clean (reduces MTBF)

Light Weight
Can be mounted on mast or other locations where weight is a concern.

Optional Pole Mount Bracket
Makes for simple installation on virtually any platform

Wide operating Temperature Range
Operates in Artic conditions to direct sunlight in desert environments

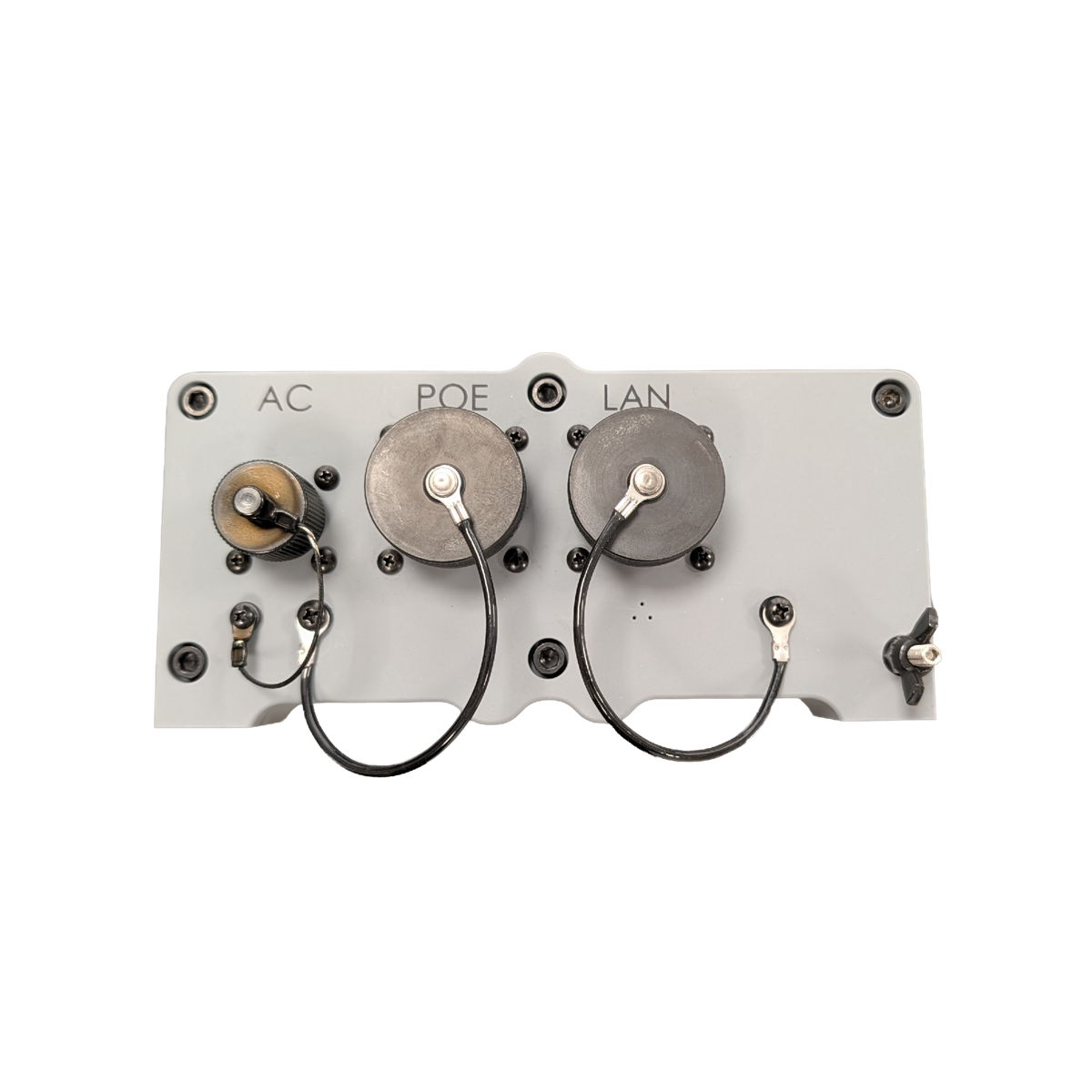

Industrial Connectors
No expensive or specialized connectors required for installation or use (this is for the IPI) The RPI uses Industry standard Amphenol and/or Phoenix Contact Connectors.

Color Options
Military Tan, Green or Gray. White Powder Coat, Grey/Black Anodized

Uses Standard Ethernet Cable
Combines power in and data out into a single economical ethernet cable

MIL Designed & Tested
MIL-STD-810H, MIL-STD-461G, UL, CE Mark and IP67 Rated

Standard Ground Lug
Ground lug built into the face of the unit and requires no tools

Optional Carrying Handle
Units can be order with permanent mounted carrying handle

Crush Resistant
Can actually be driven over

Waterproof Fully
Submersible to hold up to permanent outdoor use

Shatterproof LED Lenses
Lenses will not break or leak in extreme conditions

OVERVIEW

Small telecommunications sites rely on Power over Ethernet (PoE) to power radios, cameras and sensors.

The RUGGED!+™ (PoE) Power Over Ethernet Injector. This platform enables customers to offer wireless communications, cameras, and sensors in remote areas. Each (PoE) injector is equipped to provide clean power with the option of Battery Backup for power without interruption.

Military Units, Disaster Response Teams, and Law Enforcement personnel rely on real-time information. Most PoE injectors are small (15 watts) and require a climate controlled enclosure to protect them from the elements. The Terra Ferma Rugged!+™PoE Injectors are designed, tested,& certified to MIL-STD 810-H, MIL-STD 461.G, UL, CE Mark and IP67 rated.

FULLY MIL-Qualified and Tested

The Terra Ferma RPI Rugged!+™PoE power supply is designed and tested to MIL-STD 810-H, MIL-STD 461.G, UL, CE Mark and IP67 rated. No FIPS certification is required to operate. The highly reliable, light weight, small form factor is designed to take shock, vibe, high temps, high humidity and is passively cooled.

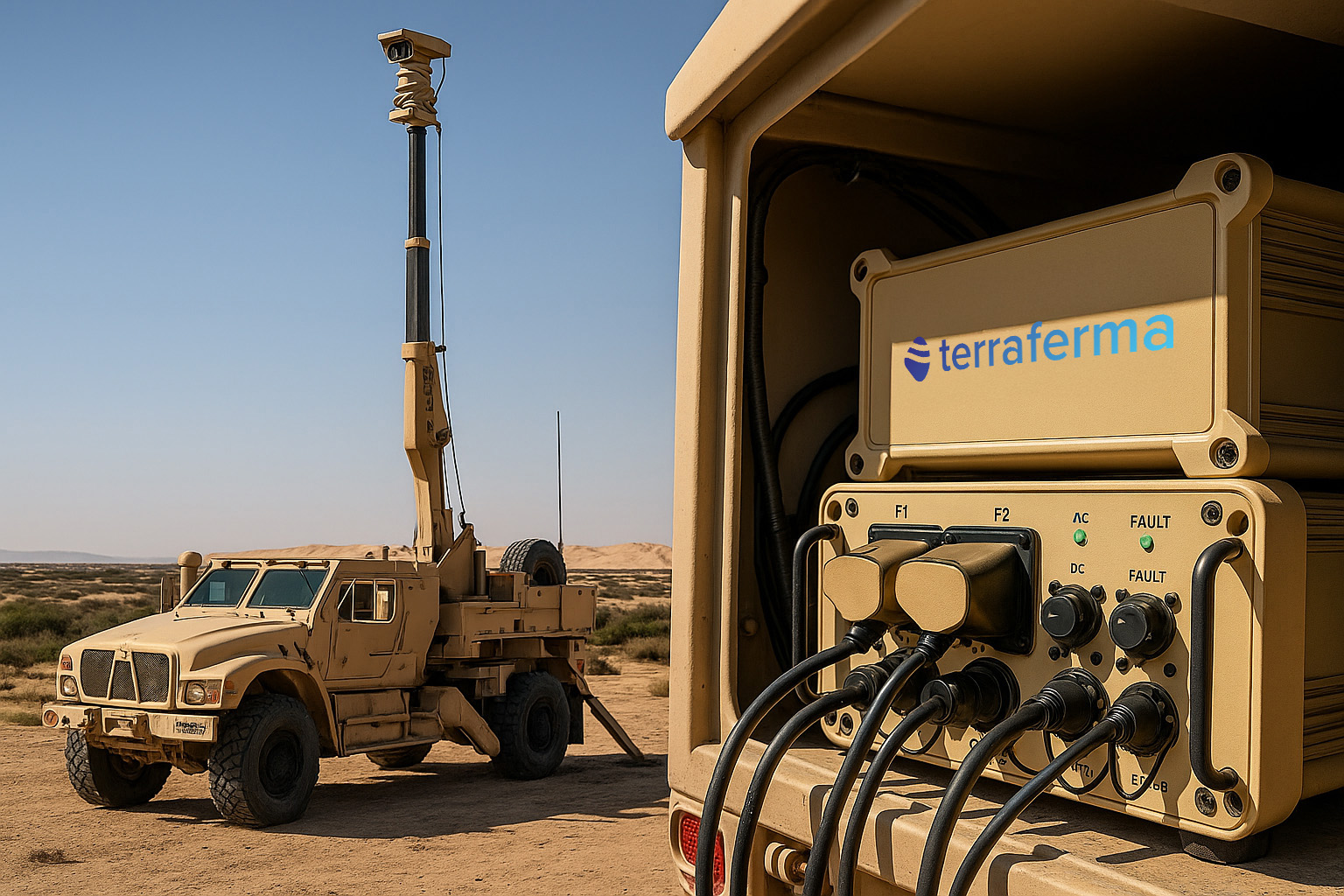

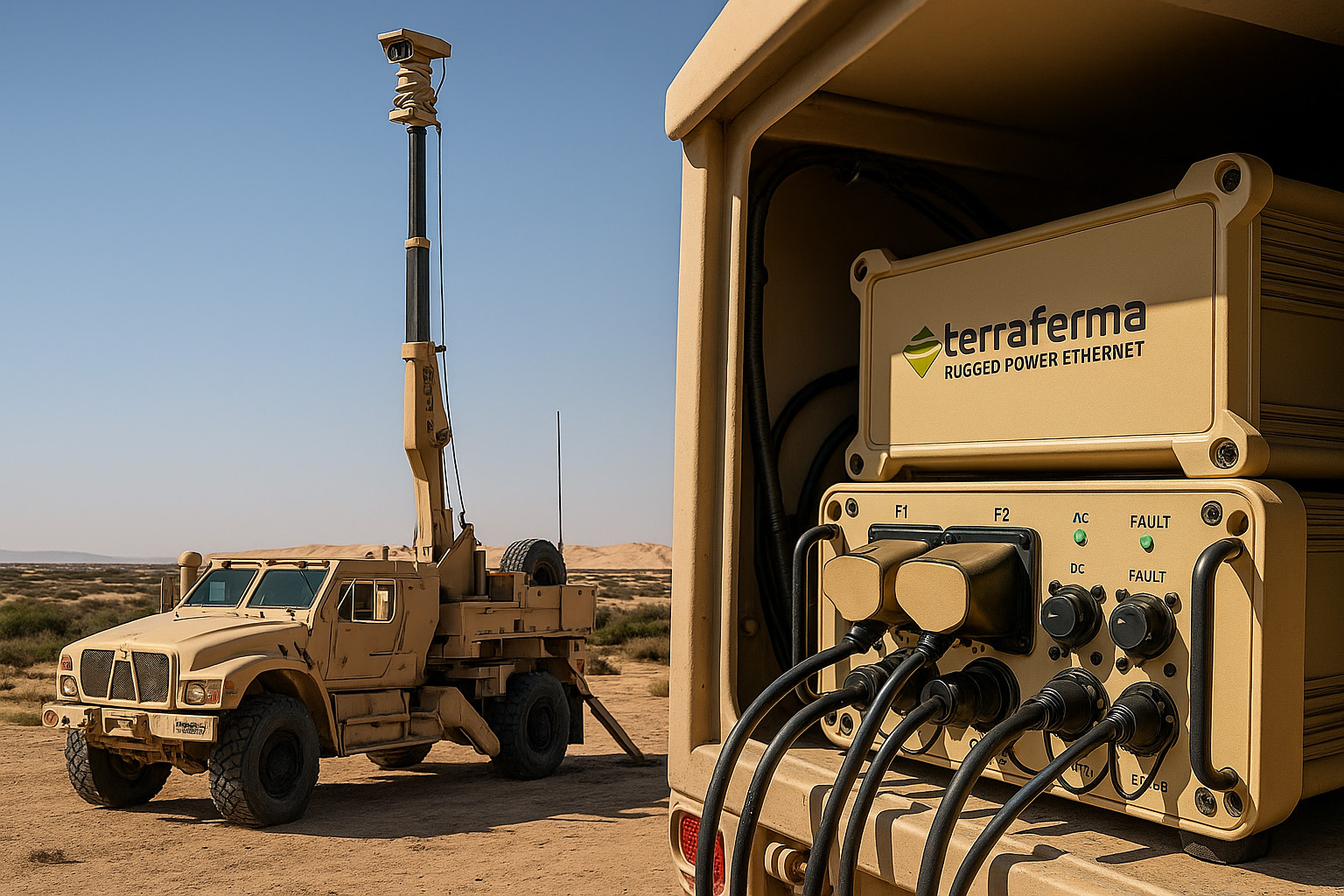

Takes power from any source on the battlefield

We take power from any global source and deliver it filtered via ethernet to any communications, surveillance, sensor, or LED light scenario you have. The unit is designed to work in high EMI environments.

QUIET, UNIVERSAL CONSTRUCTION

A fanless, rugged, all aluminum construction allows for a quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 30 minutes to 3-day capacity.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

Rugged!+™ IP66/67 Ruggedization

Available in Military and Commercial Grade

Designed for Wireless Communications, Cameras, and Sensors in Remote Areas

Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT

Lightweight Aluminum Packaging: 7lbs

Regulated 56VDC Output with Automatic Voltage and Current Clamping

DOWNLOAD SPECIFICATION PDF

Patent Pending

TECHNICAL SPECIFICATIONS

PRODUCT OPTIONS:
Power any PoE device or multiple devices from one injector

Optional Modular Battery Back up with 24 hour to 3-day capacity

Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT

COLOR OPTIONS:
Military: Olive Drab Green or Desert Tan

COMMUNICATIONS:
10/100/1000 Ethernet

MATERIAL FINISH:
Stainless steel hardware / WD-CARC over
chemical conversion coating

POWER:
Global AC Input: Input 90 – 264 VAC, 47 – 63Hz

Military Grade DC: 10 to 30VDC @ 10A

Optional Battery Backup: 48VDC @ 1.5amp-Hour to 55amp-Hour

Optional Solar Power Input: 12 to 24VDC Solar Panel (Requires Battery Backup)

POWER CONTROL:
Automatically adjustable voltage to a regulated 58VDC output
Automatically adjustable load current 0.25A – 2A
Automatic input and/or output power reset

CONNECTIVITY:
Military Grade: Amphenol RJFTV & D38999 Receptacles

INDICATORS:
Power: Green LED,
DC Power: Green LED,
Ethernet Activity: Green LED,
PoE: Green – 15 Watts, Yellow – 30 Watts, Amber – 60 Watts, Red – 100 Watts

MOUNTING:
Universal mounting positions allow tower, pole, vehicle or no mounting at all

PHYSICAL DIMENSIONS:
13-1/2” x ​7-1/16” x ​3-1/6”
Optional Battery Backup: 19” x 7-1/16” x 3-1/6”

WEIGHT:
Aluminum packaging – 9 lbs

RUGGED!+™ TECHNOLOGY

Terra Ferma’s trademarked RUGGED!+™ construction and finishing maintain product integrity in extremely harsh environments. We expect optimal performance to be achieved in the toughest manufacturing and tactical climates in the world.

TACTICAL ADVANTAGE

We created the RPI RUGGED!+™ technology to prevent outages in tactical hot zones across the globe. Whether in the high desert or intense manufacturing facilities, we’ve already thrived there.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

Rugged!+™ IP66/67 Ruggedization

Available in Military and Commercial Grade AVAILABLE IN MILITARY AND COMMERCIAL GRADE

Designed for Wireless Communications, Cameras, and Sensors in Remote Areas

Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT

Lightweight Aluminum Packaging: 7lbs

Regulated 56VDC Output with Automatic Voltage and Current Clamping

DOWNLOAD SPECIFICATION PDF

TECHNICAL SPECIFICATIONS

PRODUCT OPTIONS:
Power any PoE device or multiple devices from one injector

Optional Modular Battery Back up with 24 hour to 3-day capacity

Power over Ethernet (PoE) up to 90 watts. IEEE 802.3 AF/AT/BT

COLOR OPTIONS:
Military: Olive Drab Green or Desert Tan

COMMUNICATIONS:
10/100/1000 Ethernet

MATERIAL FINISH:
Stainless steel hardware / WD-CARC over
chemical conversion coating

POWER:
Global AC Input: Input 90 – 264 VAC, 47 – 63Hz

Military Grade DC: 10 to 30VDC @ 10A

Commercial Grade DC: 10 – 60VDC @ 10A

Optional Battery Backup: 48VDC @ 1.5amp-Hour to 55amp-Hour

Optional Solar Power Input: 12 to 24VDC Solar Panel (Requires Battery Backup)

POWER CONTROL:
Automatically adjustable voltage to a regulated 58VDC output
Automatically adjustable load current 0.25A – 2A
Automatic input and/or output power reset

CONNECTIVITY:
Commercial Grade: IP67 Molex Receptacles
Military Grade: Amphenol RJFTV & D38999 Receptacles

INDICATORS:
Power: Green LED,
DC Power: Green LED,
Ethernet Activity: Green LED,
PoE: Green – 15 Watts, Yellow – 30 Watts, Amber – 60 Watts, Red – 100 Watts

MOUNTING:
Universal mounting positions allow tower, pole, vehicle or no mounting at all

PHYSICAL DIMENSIONS:
13-1/2” x ​7-1/16” x ​3-1/6”
Optional Battery Backup: 19” x 7-1/16” x 3-1/6”

WEIGHT:
Aluminum packaging – 9 lbs

TACTICAL ADVANTAGE

We created the RPI RUGGED!+™ technology to prevent outages in tactical hot zones across the globe. Whether in the high desert or intense manufacturing facilities, we’ve already thrived there.
